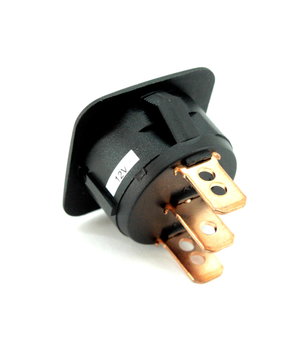

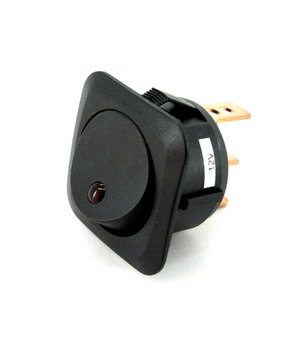

ROCKER SWITCH 10A 12VDC, with LED illuminated, ON-OFF
Code CPR435R- Manufacturer SCI
- ID code R13-203L-01-BBR-L-1
- Weight 8.00g
E-shop price: 2,90 €
| Amount: | 5+ | 10+ |
| Price: | 2,64 | 2,38 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description
- Contacts configuration: SPST
- Number of positions: 2
- Key button colour: black
- Illumination: LED 12V DC
- Max. contact resistance: 50mΩ
- Body colour: black
- Operating temperature: -20...85°C
- Leads: 6,3x0,8mm connectors
- Panel thickness: max. 4mm
- Mounting hole diameter: Ø24mm
- Button marking: blank
- Backlight colour: red
- Stable positions number: 2
- Dielectric strength: 1.5kV AC
