PUSH BUTTON SWITCH ON-OFF, 1.5A / 250VAC, with red LED
Code CPR594R- Manufacturer SCI
- ID code R13-523BL-05-BRL1
- Weight 3.30g
E-shop price: 3,65 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 3,28 | 3,06 | 2,87 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (2) | |
Description
Contacts configuration: SPST-NO
Backlight colour: red
Illumination: LED 12V DC
Leads: for soldering
Operating temperature: -25...70°C
Max. contact resistance: 50mΩ
Mounting hole diameter: Ø16mm
AC test voltage: 1.5kV
Panel thickness: max. 3mm
Mounting: on panel

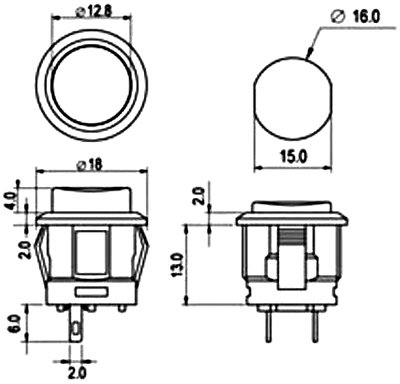

Body dimensions: Ø18x13mm
Flammability rating: UL94V-2
Terminals plating: silver plated
Enclosure material: PBT
