PUSH BUTTON SWITCH ON-OFF, 1.5A / 250VAC, with red LED
Code CPR595R- Manufacturer SCI
- ID code R13-508BL-05-BR-L-1
- Weight 4.00g
E-shop price: 3,50 €
| Amount: | 4+ | 8+ |
| Price: | 3,15 | 2,81 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (5) | |
Description
Contacts configuration: SPST-NO
Backlight colour: red
Illumination: LED 12V DC
Leads: for soldering
Operating temperature: -25...70°C
Max. contact resistance: 50mΩ
Button shape: prominent, round
Mounting hole diameter: Ø16mm
Body material: polyamide
AC test voltage: 1.5kV
Panel thickness: max. 7mm
Mounting: on panel

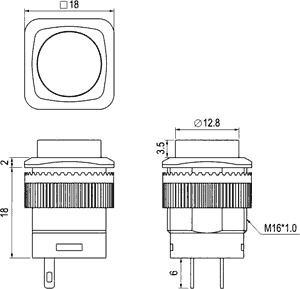

Body dimensions: Ø17.5x18mm
Flammability rating: UL94HB
Terminals plating: silver plated
