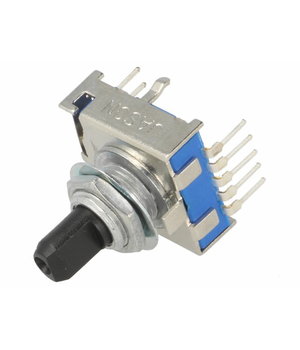

ROTARY SWITCH 6pin x1way, 0.3A / 16VDC, for PCB, horizontal
Code CPR616H- Weight 10.00g
E-shop price: 3,20 €
| Amount: | 3+ | 5+ |
| Price: | 2,88 | 2,54 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (8) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (3) | |
Item description
Stable positions number 6-position
Poles number 1
Indexed positions 30°
Shaft surface smooth
Number of positions 6
Operating temperature -20...70°C
Leads for PCB, straight
Shaft diameter 6mm
Shaft length 20mm
Min. insulation resistance 100MOM
Mechanical durability 10000cycles
Switching method BBM (non-shorting)
Fastening thread M9x0,75
Contact material brass
Max. contact resistance: 50mOM
Switching torque 2.9Ncm
Body material steel
