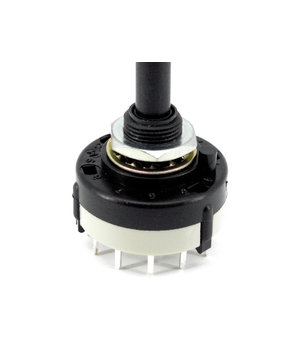

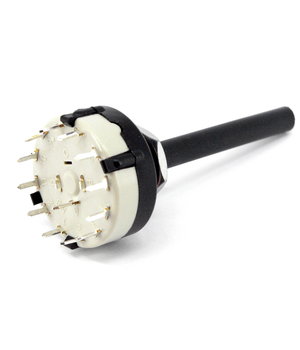

ROTARY SWITCH 2pin x 6way, 0.3A / 125VAC, 1A / 30VDC
Code CPR626- Manufacturer CANAL ELECTRONIC
- ID code SR26NS1-2-6P-M10-38R6
- Weight 13.00g
E-shop price: 3,20 €
| Amount: | 3+ | 5+ |
| Price: | 2,88 | 2,54 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (3) | |
Description

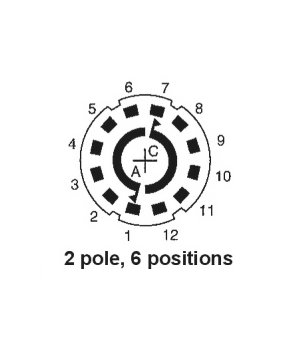

Stable positions number 6-position
Poles number 2
Indexed positions 30°
Operating temperature -10...60°C
Leads for PCB
Switching method BBM (non-shorting)
Max. contact resistance: 25mOM
Mechanical durability 10000cycles
Shaft surface smooth

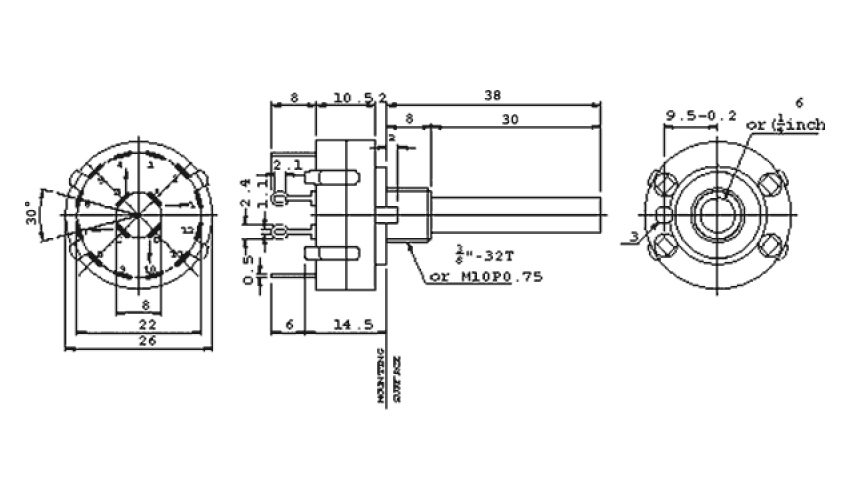

Shaft diameter 6mm
Min. insulation resistance 100MOM
Shaft length 30mm
Fastening thread M10x0,75
Diameter 28.2mm
Length 52.5mm
