MICROSWITCH ON-(ON), 5A/250V, with roller lever, IP40, 10.6x19.8x6.4mm
Code CPR700LR- Weight 2.70g
E-shop price: 1,00 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 0,88 | 0,81 | 0,75 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (17) | |
| Shop in Kaunas | Item available (7) | |
Description
Contacts configuration: SPDT
Max. contact resistance: 30mΩ
IP rating: IP40
Leads: for soldering

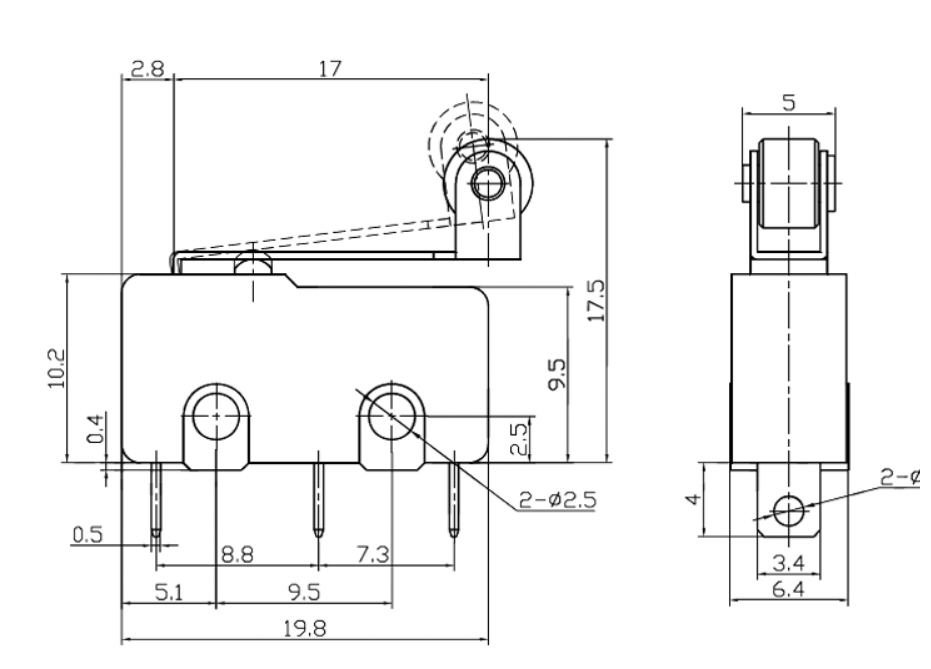

Body dimensions: 19.8x6.4x10.6mm
Operating temperature: -25...65°C
Operating Force: 1.5N
Lever length: 17mm
Electrical life: 30000 cycles
Min. insulation resistance: 100MΩ
Terminal pitch: 7.3mm
