MICROSWITCH ON-(ON) 15A/250V 3pin, IP40, 16x28x10.3mm
Code CPR701- Weight 6.70g
E-shop price: 1,30 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,10 | 0,73 | 0,64 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (8) | |
| Shop in Kaunas | Item available (16) | |
Description
Contacts configuration: SPDT
Max. contact resistance: 30mΩ
IP rating: IP40
Leads: connectors

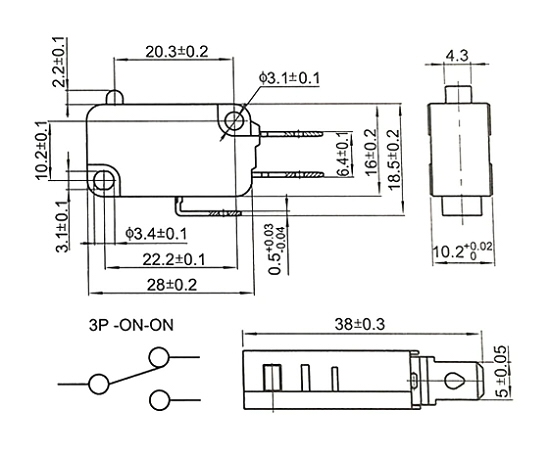

Body dimensions: 28x10.3x16mm
Operating temperature: -25...80°C
Operating Force: 1.6N
Electrical life: 100000 cycles
Min. insulation resistance: 100MΩ
