Mechanical encoder 20 impulses, 5mA, with switch
Code CPR8E20SR- Weight 10.00g
E-shop price: 2,50 €
| Amount: | 5+ | 10+ |
| Price: | 2,18 | 1,56 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (13) | |
| Shop in Kaunas | Item is not available (0) | |

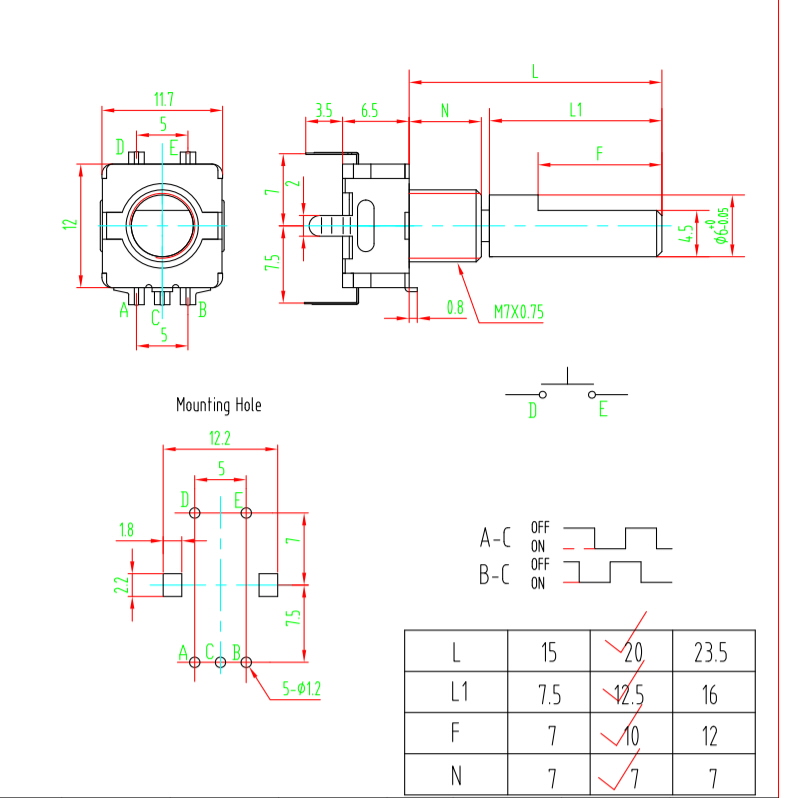

Description
Type of encoder incremental
Resolution 20imp/revol.
Output signal two phase A and B
Mechanical durability 30000cycles
Max. operating current 5mA
Shaft surface D spring
Shaft length 13mm
Operating voltage 5V DC
Shaft diameter 6mm
Number of positions 20
Cut depth 1.5mm
Encoders features with button
Thread length 7mm
L shaft length 20mm
Body dimensions 11.7x13.75x6.5mm
Spatial orientation vertical
Terminal pitch 2.54x14.5mm
