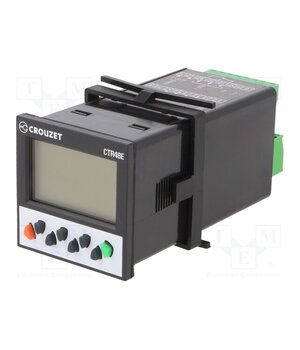

87629114 Counter: electronical; LCD; pulses; -999999÷999999; SPST-NO

• Supply voltage — 230V
• Operating temperature — -10°C…50°C
• Supply voltage AC — 230V AC
• Supply voltage DC — 230V DC
• —
• Counting range — -999999...999999
• Kind of output 1 — SPST-NO
• —
• Mounting — on panel
• —
• —
• —
• Kind of input 2 — PNP
• Mounting hole diameter — 45x45mm
• Kind of output 2 — SPDT
• —
• —
• —
• Manufacturer — CROUZET
• —
• Type of counter — electronical
• Kind of display used — LCD
• Kind of counter — progressive/reversing
• —
• Kind of input 1 — NPN
• —
• —
• —
• The additional control inputs — RESET
• Type of counted signal — pulses
• Body dimensions — 48x48x112.8mm
• Kind of input 1 — PNP
• —
• —
• —
• —
• Electrical connection — screw terminals
• —
• The additional control inputs — LOCK
• Kind of input 2 — NPN
