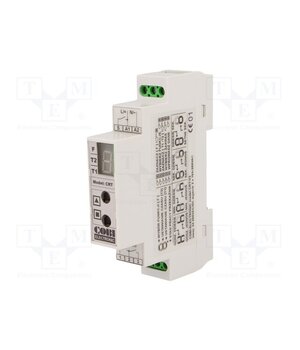

CRT-V2 Timer; Range: 0,01s÷100h; NO x2; 24÷250VAC; 24÷250VDC; Display: LED

• Number of pins — 6
• Supply voltage AC — 24V AC…250V AC
• Operating temperature — -20°C…50°C
• Supply voltage DC — 24V DC…250V DC
• Number of operation modes — 16
• —
• Counter operation modes — ON and OFF delay
• Counter operation modes — cyclical operation with two independent times T1 and T2, pause first
• Mounting — for DIN rail mounting
• Counter operation modes — star delta
• Counter operation modes — pulse after a specified time
• —
• Counter operation modes — delayed switching off
• Type of module — timer
• IP rating — IP20
• Type of automation module — timer
• Output 1 electrical parameters — 250V AC / 16A
• Counting range — 0,01s...100h
• Kind of display used — LED
• Kind of output — NO x2
• —
• Counter operation modes — cyclical operation with two independent times T1 and T2, pulse first
• Counter operation modes — delayed switching on
• —
• Electrical connection — screw terminals
• Manufacturer — COBI ELECTRONIC
• —
• Counter operation modes — with the control contact S
