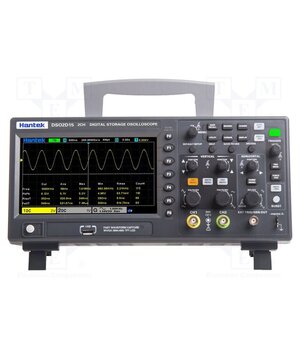

DSO2D10 Oscilloscope: digital; DSO; Ch: 2; Band: 100MHz; 1Gsps; 4Mpts/ch

• Supply voltage AC — 100V AC…240V AC
• Operating temperature — 0°C…50°C
• Supply voltage DC — 100V DC…240V DC
• Maximum waveform frequency — 25MHz
• Additional functions — arbitrary waveform generator
• —
• Measuring instrument features — FFT analysis: Hanning, Flattop, Rectangular, Bartletta, Blackman, Hamming
• Waveform frequency range — 1µHz...25MHz (arbitrary waveform)
• Measuring instrument features — mathematical functions: addition, subtraction, division, multiplication and FFT
• Standard equipment — oscilloscope probe with 10:1 divider
• Standard equipment — mains cable
• —
• —
• —
• Kind of display used — LCD TFT 7"
• Measuring instrument features — measurements by means of cursors
• —
• —
• —
• Standard equipment — test leads
• Measuring instrument features — automatically measures frequency, period, peak to peak, RMS, MIN, MAX, MEAN values
• Waveforms — sinus
• —
• —
• Waveforms — rectangular
• Waveforms — noise
• —
• Waveforms — ramp
• —
• —
• —
• Waveforms — arbitrary
• —
• Waveform frequency range — 0,1Hz...10MHz (rectangular waveform)
• —
• Sampling — 1Gsps
• —
• —
• —
• —
• Standard equipment — USB cable
• Band — 100MHz
• —
• Waveforms — exponential
• —
• Software — included
• —
• —
• —
• —
• Body dimensions — 318x110x150mm
• —
• Conform to the norm — EN 61010
• —
• —
• —
• Conform to the norm — CAT II 300V
• —
• Interface — USB
• —
• Measuring instrument features — protocols analyse: I2C, SPI, RS232/UART, CAN, LIN
• —
• Manufacturer — HANTEK
• —
• —
• Input impedance — 1MΩ/20pF
• Kind of display used — colour
• Waveforms — DC
• —
• —
• Waveform frequency range — 0,1Hz...25MHz (sinus waveform)
• Waveform frequency range — 0,1Hz...1MHz (ramp waveform)
• —
• Number of channels — 2
