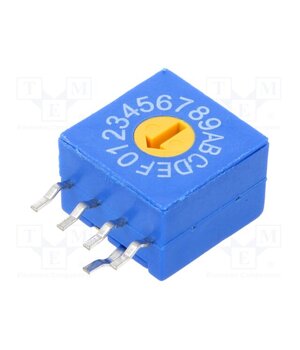

ERD416RRZ Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; 5Ncm; tube

• Contacts pitch — 2.54mm
• Max. contact resistance — 100mΩ
• Operating temperature — -40°C…85°C
• Min. insulation resistance — 1GΩ
• Stable positions number — 16
• —
• —
• Leads — for PCB
• Terminal pitch — 2.54mm
• Body dimensions — 10x10x4.35mm
• Manufacturer — ECE
• Switches Features — without knob
• —
• —
• Switch of type — encoding
• Contact plating — gold-plated
• —
• Contact material — copper alloy
• Flammability Rating — UL94V-0
• Kind of encoding switch — HEX/BCD
• —
• DC contacts rating @R — 0.1A / 50V DC
• Kind of package — tube
• Mounting — through-hole technology
