FULLRANGE SPEAKER SC5.9ND 8Om
Code GAVSASC5ND/8- Manufacturer VISATON
- ID code 8056
- Weight 56.00g
E-shop price: 12,90 €
| Amount: | 3+ | 5+ |
| Price: | 12,13 | 12,00 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (4) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (2) | |
Item description
Magnetically shielded 5 x 9 cm (2" x 3.5") fullrange driver with good efficiency and balanced frequency response with a clear highrange reproduction. Extremely small size due to a neodymium magnet system. Applicable as built-in speaker in TV's and PC's with very small mounting space.
Technical Data:
Opening angle (-6 dB): 180°/4000 Hz hor. 131°/4000 Hz ver.
Excursion limit: +/-1 mm
Resonance frequency fs: 280 Hz
Magnetic induction: 0,75 T
Magnetic flux: 100 µWb
Height of front pole-plate: 3 mm
Voice coil diameter: 14 mm
Height of winding: 4 mm

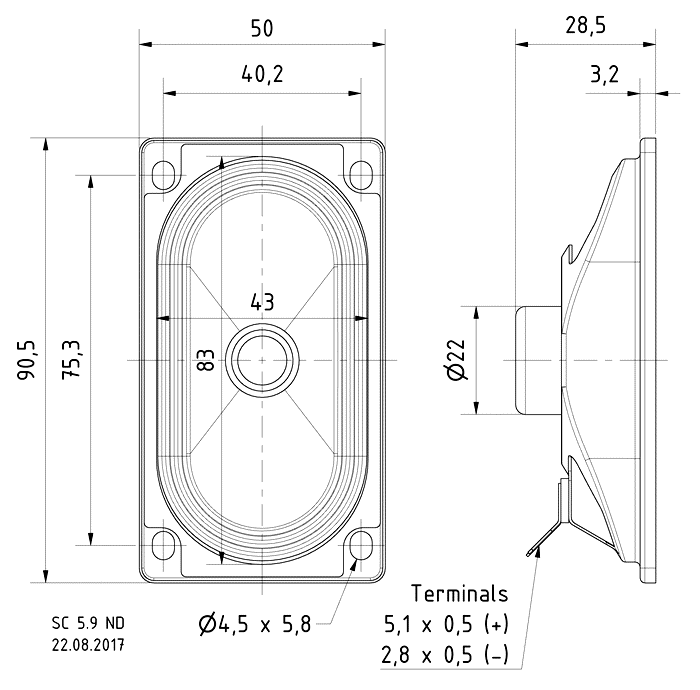

Cutout diameter: 43 x 82 mm (oval)
D.C. resistance Rdc: 7,7 Ohm
Mechanical Q factor Qms: 6,98
Electrical Q factor Qes: 10,02
Total Q factor Qts: 4,11
Equivalent volume Vas: 0,4 l
Effective piston area Sd: 26,5 cm²
Dynamically moved mass Mms: 1,2 g
Force factor Bxl : 1,2 Tm
Inductance of the voice coil L: 0,4 mH
Connections: 4.8 x 0.5 mm (+) , 2.8 x 0.5 mm (-)
Temperature range: -25 ... 70 °C
