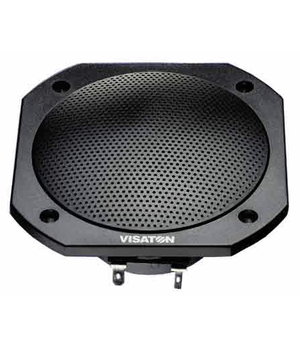

FULLRANGE SPEAKER FRS 10WP 4Ω, black, Visaton
Code GAVSPFRS10WPJ- Manufacturer VISATON
- ID code 2100
- Weight 426.00g
E-shop price: 64,90 €
| Amount: | 3+ | 5+ | 8+ |
| Price: | 59,06 | 55,12 | 51,51 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Saltwater resistant 10 cm (4") full-range driver with glas fibre cone, plastic basket and grille. Balanced frequency response, high efficiency and good high-midrange reproduction. Long time weather proved and therefore especially suited for out-door sound reinforcement systems, swimming pools, sauna and speaker for boats, ships and open vehicles. Also suitable for model boat applications.
Rated power 25 W
Opening angle (-6 dB) 64°/4000 Hz
Excursion limit +/−3 mm
Resonance frequency fs 190 Hz
Magnetic induction 1,0 T
Magnetic flux 190 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5 mm

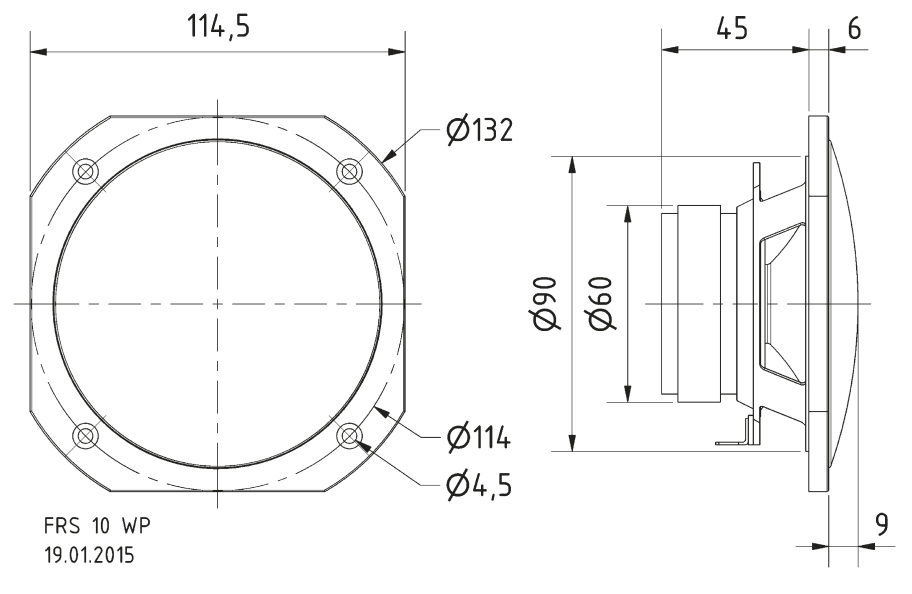

Cutout diameter 92 mm
Net weight 0,36 kg
D.C. resistance Rdc 3,4 Ohm
Mechanical Q factor Qms 8,29
Electrical Q factor Qes 1,02
Total Q factor Qts 0,91
Equivalent volume Vas 2 l
Effective piston area Sd 57 cm²
Dynamically moved mass Mms 2,4 g
Force factor Bxl 3,8 Tm
Inductance of the voice coil L 0,2 mH
Connections 4,8 x 0,8 mm (+)
2,8 x 0,8 mm (−)
Protective system IP 65 *)
Temperature range −40 ... 120 °C
