FULLRANGE SPEAKER R10S 4Ω
Code GAVSPR10S- Manufacturer VISATON
- ID code 2036
- Weight 177.00g
E-shop price: 12,50 €
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description
10 cm (4") fullrange speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices. Equivalent to model R 10 S TE - 4 Ohm, but with connectors 5.2 x 0.5 mm (+) and 2.8 x 0.5 mm (-).
Rated power: 20 W
Maximum power: 30 W
Opening angle (-6 dB): 92°/4000 Hz
Excursion limit: +/-1,5 mm
Resonance frequency fs: 160 Hz
Magnetic induction: 0,95 T
Magnetic flux: 135 µWb
Height of front pole-plate: 3 mm
Voice coil diameter: 15 mm
Height of winding: 4 mm

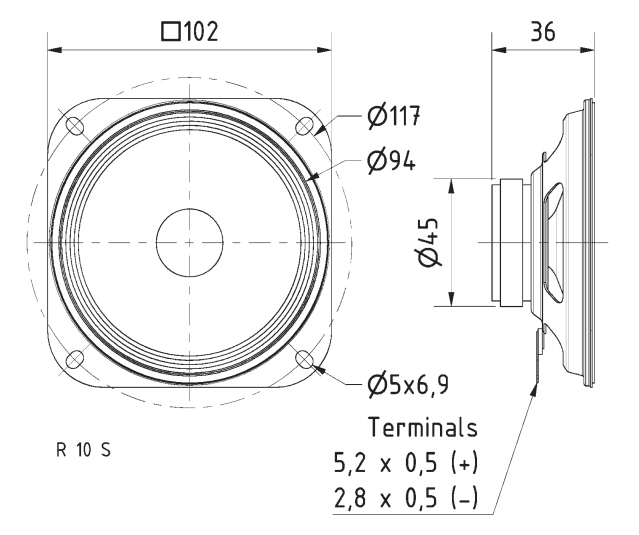

Cutout diameter: 93 mm
Net weight: 0,16 kg
D.C. resistance Rdc: 3,4 Ohm
Mechanical Q factor Qms: 5,53
Electrical Q factor Qes: 1,96
Total Q factor Qts: 1,45
Equivalent volume Vas: 1,9 l
Effective piston area Sd: 56 cm²
Dynamically moved mass Mms: 1,9 g
Force factor Bxl: 1,9 T m
Inductance of the voice coil L: 0,2 mH
Connections: 5,2 x 0,5 mm (+) / 2,8 x 0,5 mm (-)
Temperature range: -40 ... 70 °C
