WOOFER W250 8Ω
Code GAVSZW250/8- Manufacturer VISATON
- ID code 9067
- Weight 1750.00g
E-shop price: 69,90 €
| Amount: | 3+ | 5+ |
| Price: | 66,40 | 64,31 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item is not available (0) | |
Description
25 cm (10") woofer with air-dried cone and cone reinforcement. Front or rear mounting possible. Very good price/performance ratio and high power handling.
Technical Data:
Rated power 90 W
Excursion limit +/-10 mm
Resonance frequency fs45 Hz
Magnetic induction 1.0 T
Magnetic flux 660 µWb
Height of front pole-plate 6 mm
Voice coil diameter 35 mm
Height of winding 12 mm

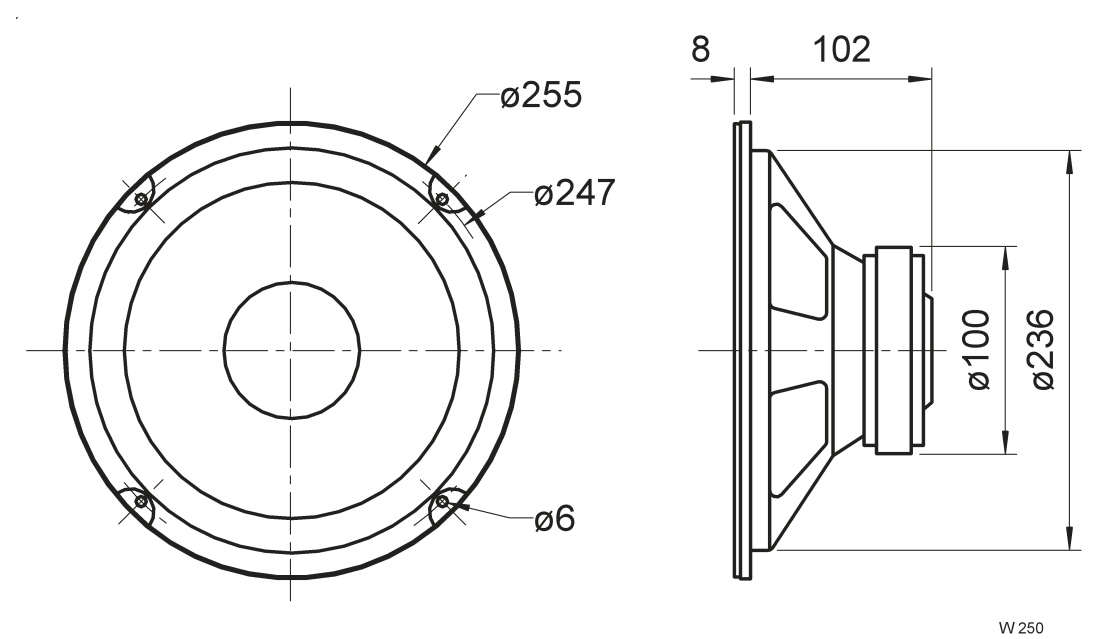

Cutout diameter 236 mm
D.C. resistance Rdc 6.8 Ohm
Mechanical Q factor Qms 3.57
Electrical Q factor Qes 1.00
Total Q factor Qts 0.78
Equivalent volume Vas 135 l
Effective piston area Sd 360 cm²
Dynamically moved mass Mms 27 g
Force factor Bxl 6.4 Tm
Inductance of the voice coil L 1.1 mH
