3D printing nozzles - 0.2/0.3/0.4/0.5mm H13-M6 - 1.75mm plastic - RepRap E3D V5 V6
Code IIVR3D4- Weight 13.00g
E-shop price: 2,80 €
| Amount: | 3+ | 5+ |
| Price: | 2,49 | 2,34 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description
The 0.2/0.3/0.4/0.5 mm hole cone 3D printing nozzle set is designed for working with 1.75 mm plastic.

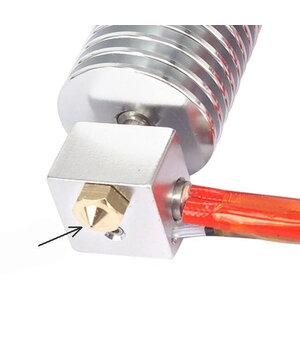

The nozzles fit most 3D printer heads that use the E3D V6 system with M6 thread.
The brass tip conducts heat very well, making it extremely popular in 3D printing.
The nozzle is the last and most important part of the printing process.
It is important to clean the nozzle frequently, especially when different types and colors of plastics are often processed.
A clogged or dirty nozzle hole can be cleaned with cleaning needles or drill bits
Features:
The internal geometry of the V6 nozzles is optimized to reduce back pressure, ensuring a smooth, easy thread flow and increased retraction efficiency.
The nozzle tip has a flat surface that smoothes the layers and is machined separately for each nozzle size.
The small tip ensures high precision.
The brass tip has excellent thermal conductivity.
We print faster with a brass tip than with a steel tip.

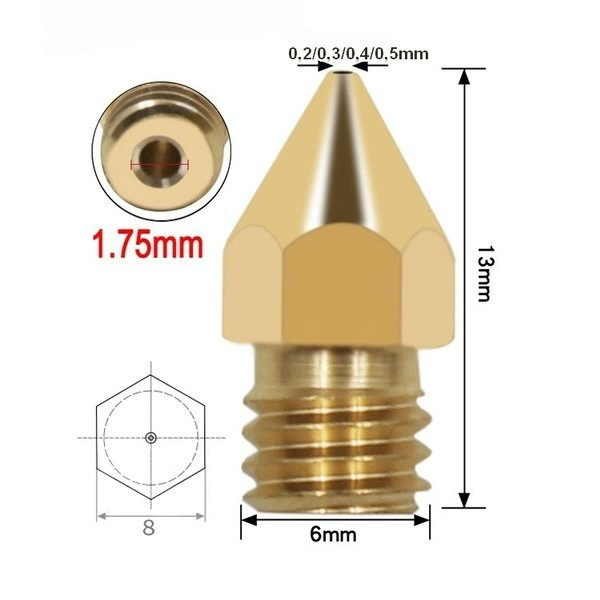

Technical data:

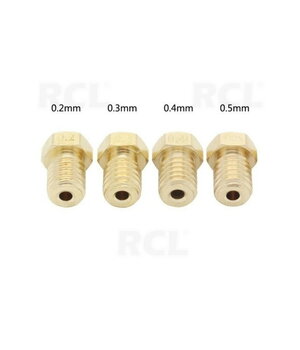

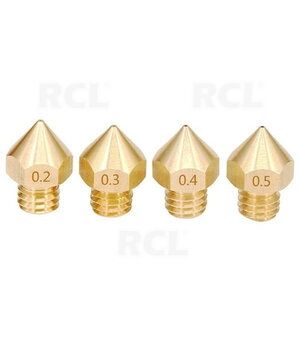

Nozzle hole diameter: 0.2 / 0.3 / 0.4 / 0.5 mm
Height: 13mm
M6 thread
For heatable plastic: 1.75mm RepRap E3D v5 v6
Material: brass
Set:
Tip 0.2mm M6 - Plastic 1.75mm - H13mm - 1 pcs
Tip 0.3mm M6 - Plastic 1.75 mm - H13 mm - 1 pcs
Tip 0.4mm M6 - Plastic 1.75mm - H13mm - 1 pcs
Tip 0.5 mm M6 - Plastic 1.75 mm - H13 mm - 1 pcs
