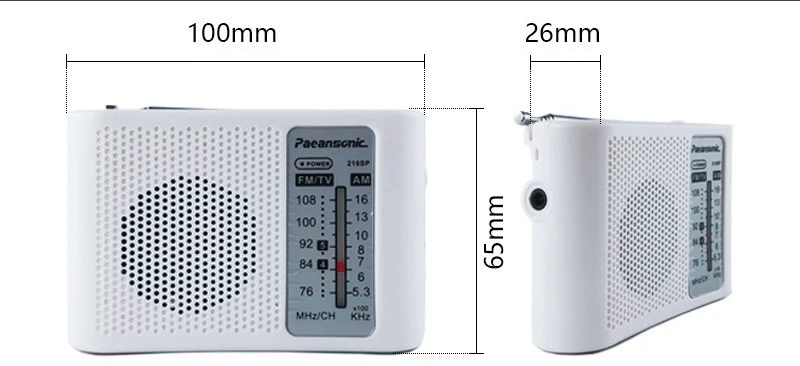

FM-AM radio receiver construction - kit with housing IK015.jpg

FM-AM radio receiver construction - kit with housing

Code IK015
  • Weight 90.00g

E-shop price: 6,95

Amount: 3+ 5+
Price: 6,39 6,20
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Description

Drawing

The 210SP radio is a new type of FM and AM two-band radio. The FM band adopts the chip of CD9088, which is packaged with SMT, and the receiving frequency range is 76-108MHZ. Amplitude modulation band adopts the direct amplifier integrated circuit TA7642, and the receiving frequency range is 525-1605KHZ. It has the advantages of simple circuit, high assembly success rate and good selectivity.
The power amplifier circuit adopts the special power amplifier integrated circuit of TDA2822, which good sound quality.
