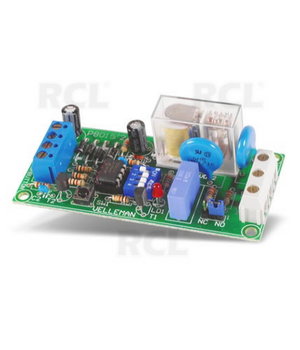

MULTIFUNCTION RELAY SWITCH 9-12VAC, 12VDC, 87x39x26mm

Code IK8015
  • Weight 145.00g

E-shop price: 12,99

Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 3pcs.
Item location:
Central warehouse in Kaunas Item available (1)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (1)

Item description

14 different functions including timers, switching, flashing, interval, random switching, ... Two pre-programmed delays. Learning mode for delays of 2s up to 12 days. Pushbutton control. EEPROM for delay time storage in case of power failure. On-board transient filter for the relay contacts. Suitable for control of incandescent lighting, halogen lighting, fluorescent lighting, fans, valves, buzzers,...

Specifications:
operating voltages: 9-12Vac or 12Vdc
max. load: 5A (1100W / 230V ; 550W / 115V)
dimensions pcb: 87 x 39 x 26mm / 3.4 x 1.5 x 1"
