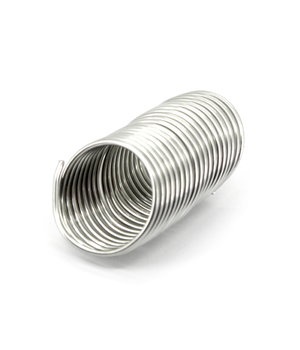

SOLDER 1mm 6gr., 1m, Sn95.5 Ag3.8 Cu0.7
Code ILYD10S- Weight 7.35g
E-shop price: 1,95 €
| Amount: | 3+ | 5+ |
| Price: | 1,74 | 1,61 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (21) | |
| Shop in Vilnius | Item available (9) | |
| Shop in Kaunas | Item available (5) | |
Item description
• Sufficient flux (high flux content of approx. 3. 5%; safe soldering) • Modified resins (low thermal degradation of the resin at the hot soldering iron tip up to 350°C) • Organic acid (good activity; suitable for SMT) • Halogen free (no corrosion; electrical safety) • Amine free (no corrosion) • Thermal stability (clear to cloudy residues; good visual appearance) • Less fumes (less decomposition and low evaporation at high temperatures; less contamination of the solder joint environment) • Can be used for hand and machine soldering applications
Melting Range: 217°C
Flux Type (J-STD-004): ROL0
Flux Content (±0,3%): 3,5%
Halogen Content: None
Corroding Action (J-STD-004): None
Standard Alloy (ISO 9453:2014): Ecoloy TSC (S-Sn95Ag4CCu1)
