Electret MICROPHONE 4015, 40dB, ø4x1.5mm IMIK011L.jpg

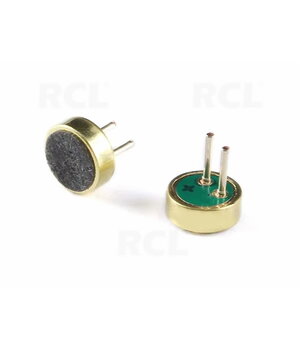

Electret MICROPHONE 4015, 40dB, ø4x1.5mm

Code IMIK011L
  • Weight 0.50g

E-shop price: 0,75

Amount: 10+ 20+
Price: 0,64 0,1874
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (20)
Shop in Vilnius Item available (5)
Shop in Kaunas Item available (5)

Description

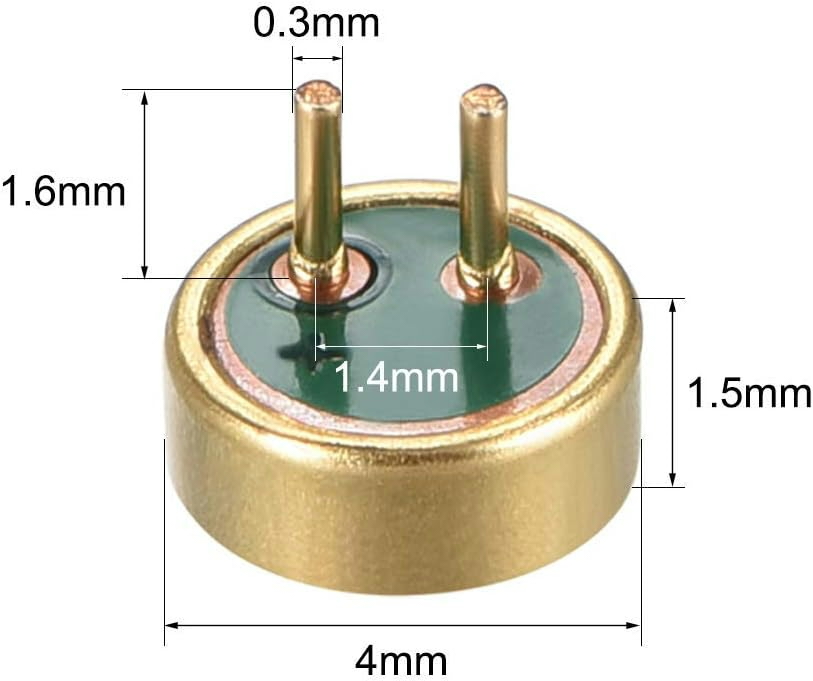

Drawing

🎤 4015 40dB Electret Microphone

The 4015 electret microphone is a compact, high-sensitivity condenser-type audio sensor designed for sound detection in a variety of electronic applications. With its small size (4mm x 1.5mm) and two-pin design, it is ideal for PCB (printed circuit board) mounting.

📐 Technical Specifications

  • 📏 Dimensions: 4 mm (diameter) x 1.5 mm (height)
  • 🔊 Sensitivity: -40 ±2 dB
  • Operating Voltage: 2V ~ 10V DC
  • 🔌 Output Impedance: ≤2.2 kΩ
  • 🔄 Frequency Response: 20 Hz – 20 kHz
  • 📶 Signal-to-Noise Ratio (SNR): ≥ 60 dB
  • 📌 Pin Type: Straight metal pins
  • 🔧 Mounting: Through-hole for PCB (THT)

🧰 Applications

  • 📱 Wearable devices
  • 📺 Smart TVs and remote controls
  • 🎮 Game consoles
  • 📡 Voice recognition systems
  • 🤖 Microcontroller-based projects

✅ Advantages

  • Small size – ideal for compact designs
  • Wide frequency range – accurate sound capture
  • Easy integration with microcontrollers
