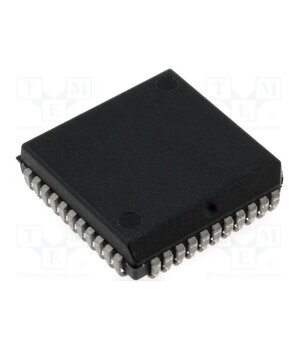

IR2135JPBF IC: driver; IGBT three-phase bridge,MOSFET three-phase bridge

• Power — 2W
• Supply voltage — 10V…20V
• Output current — -0.42A…200mA
• Supply voltage AC — 10V AC…20V AC
• Operating temperature — -40°C…125°C
• Supply voltage DC — 10V DC…20V DC
• Turn-off time — 700ns
• Turn-on time — 750ns
• Voltage class — 600V…1.2kV
• Topology — IGBT three-phase bridge
• —
• —
• Manufacturer — INFINEON TECHNOLOGIES
• Topology — MOSFET three-phase bridge
• —
• Type of integrated circuit — driver
• —
• —
• Kind of integrated circuit — high-/low-side
• Case — PLCC44
• —
• Mounting — SMD
• Number of channels — 6
• —
• Kind of integrated circuit — gate driver
• —
• Kind of package — tube
