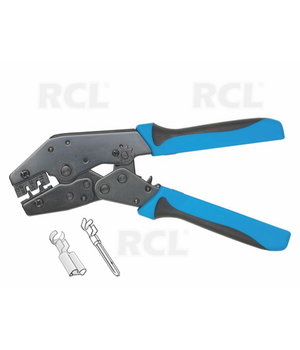

CONNECTOR CRIMP TOOLS HT-225D

Code IRE225D
  • Weight 315.00g

E-shop price: 28,00

Amount: 2+ 3+
Price: 26,60 24,87
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Item description

Length 210mm
Application 0969, DHPS, HDP20, HDP22, V35
Tool material carbon steel
Crimp tool application:
non-insulated terminals
terminals D-Sub connectors
terminals V35 connectors
Wire cross section:
0,05...0,205mm2 (non-insulated terminals)
0,05...0,205mm2 (terminals D-Sub connectors)
0,05...0,205mm2 (terminals V35 connectors)
0,325...0,823mm2 (non-insulated terminals)
0,325...0,823mm2 (terminals D-Sub connectors)
0,325...0,823mm2 (terminals V35 connectors)
Wire size:
22...18AWG (non-insulated terminals)
22...18AWG (terminals D-Sub connectors)
22...18AWG (terminals V35 connectors)
30...24AWG (non-insulated terminals)
30...24AWG (terminals D-Sub connectors)
30...24AWG (terminals V35 connectors)
Crimp tool features:
ergonomic pads on handles
the die crimps terminals on a conductor and a wire insulation simultaneously
a ratched mechanism serves also as a handle lock
blackened tool
hardened tools
a modified lever mechanism enables to operate with lower force in comparison with standard tools

Specification
