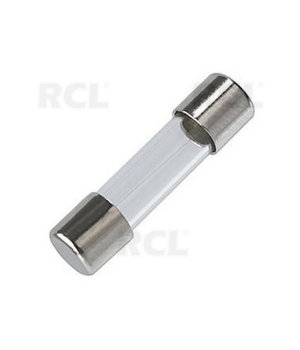

FUSE ø5x20mm 1.25A time lag
Code ISGF125L- Weight 1.00g
E-shop price: 0,2500 €
| Amount: | 10+ | 50+ |
| Price: | 0,2150 | 0,1387 |
| 0,1894 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (84) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (14) | |
Item description
Fuse characteristics time-lag
Kind of fuse miniature, glass
Breaking capacity 35A
Current rating 1.25A
Rated voltage 250V AC
Fuse size 5x20mm
Breaking characteristics 2,1 In: max 2 min., 2,75 In: min 600 ms, 2,75 In: max 10 s, 4 In: min 150 ms, 4 In: max 3 s, 10 In: min 20 ms, 10 In: max 300 ms
Max voltage drop 150mV
Contact material brass
Contact plating nickel plated
