FAN DC 12VDC 50x50x10mm,  18.7m3/h 25.6dBa MF50101V2-1000U-A99 IVT1205.png

FAN DC 12VDC 50x50x10mm, 18.7m3/h 25.6dBa MF50101V2-1000U-A99

Code IVT1205
  • Manufacturer SUNON
  • ID code MF50101V2-1000U-A99
  • Weight 25.00g

E-shop price: 4,90

Amount: 3+ 5+
Price: 4,46 3,96
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (2)
Shop in Vilnius Item available (3)
Shop in Kaunas Item available (3)

Description

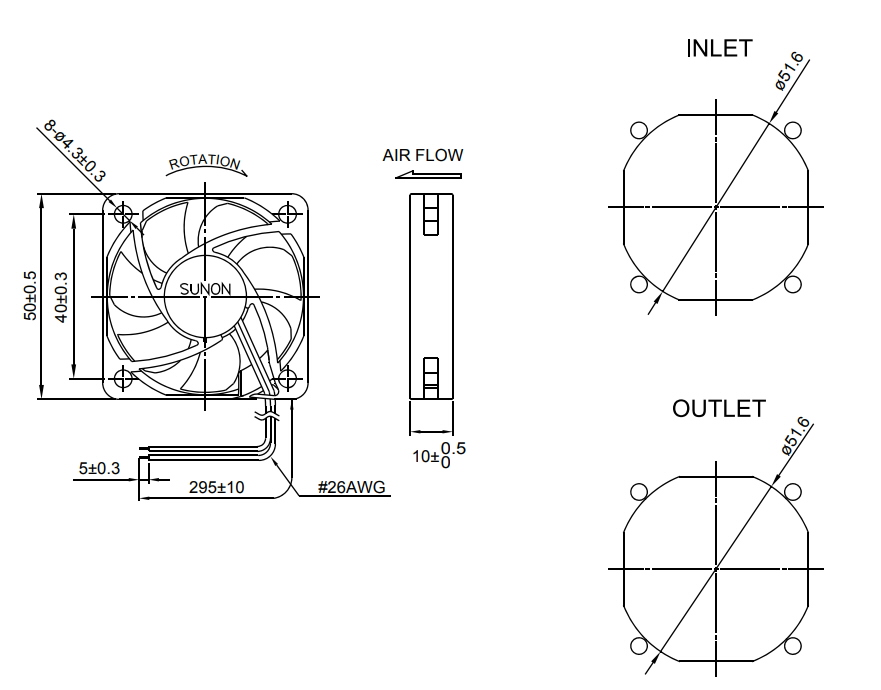

Drawing Datasheet

🌀 FAN Sunon MF50101V2-1000U-A99

Model: MF50101V2-1000U-A99
Manufacturer: Sunon
Series: MagLev® MF
Fan Type: Axial (DC Brushless)

🔧 Technical Parameters

  • Voltage: 12 V DC (operating range: 6–13.8 V)
  • Current: 50 mA
  • Power Consumption: 0.6 W
  • Dimensions: 50 × 50 × 10 mm
  • Airflow: 11 CFM (0.31 m³/min)
  • Static Pressure: 0.110 in H₂O (27.4 Pa)
  • Noise Level: 25.6 dBA
  • Speed: 4800 RPM
  • Bearing Type: Vapo-Bearing™
  • Lifespan: 70,000 hours at 40 °C
  • Operating Temperature: -10 °C to +70 °C
  • Weight: 19.5 g
  • IP Rating: IP20
  • Flammability Rating: UL94V-0
  • Insulation Class: A
  • Insulation Resistance: ≥10 MΩ
  • Lead Length: 295 mm (2 wires, 26 AWG)
  • Additional Features: Auto-restart, Polarity protection

🧩 Materials

  • Frame: Polybutylene Terephthalate (PBT)
  • Blades: Polybutylene Terephthalate (PBT)

✅ Certifications

  • cURus
  • TUV

Specification
