FAN DC 24V 92x92x32mm 74m3/h 48.8dBA, 3800 RPM MR9232M24B-FSR IVT2409_74.jpg

FAN DC 24V 92x92x32mm 74m3/h 48.8dBA, 3800 RPM MR9232M24B-FSR

Code IVT1209/74
  • ID code MR9232M24B-FSR
  • Weight 160.00g

E-shop price: 16,90

Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (2)

Description

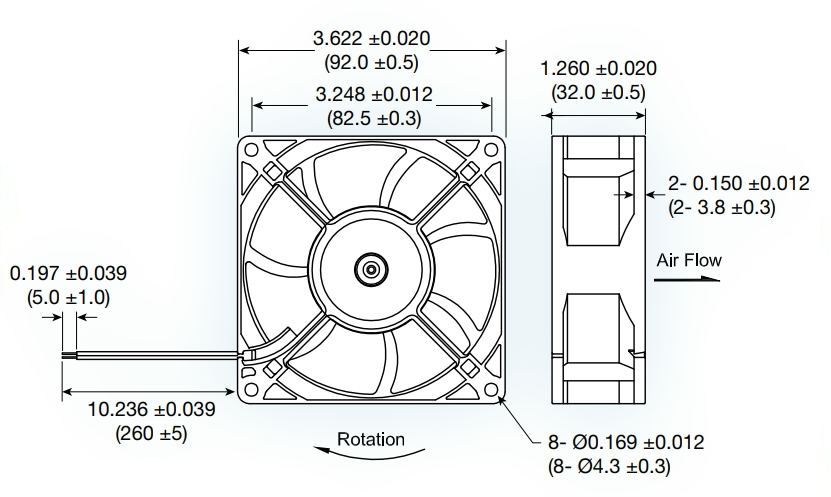

Drawing Datasheet

🌀 Fan MR9232M24B-FSRMechatronics Fan Group

A powerful and reliable industrial cooling fan designed for effective heat dissipation in various electronic and mechanical systems.

🔧 Technical Specifications:

  • Model: MR9232M24B-FSR
  • Manufacturer: Mechatronics Fan Group
  • Dimensions: 92 x 92 x 32 mm
  • Bearing Type: Ball Bearing
  • Rated Voltage: 24 V DC
  • Current: 0.12 A
  • Power Consumption: 2.88 W
  • Airflow: 45.1 CFM (1.277 m³/min)
  • Noise Level: 34.1 dBA
  • Speed: 3200 RPM
  • IP Rating: IP55 (dust and water resistant)
  • Life Expectancy: 70,000 hours at 40°C

⚙️ Features and Benefits:

  • Long lifespan with durable ball bearings
  • Environmental protection with IP55 rating
  • Compact design – ideal for limited-space applications
  • Suitable for servers, control panels, and industrial systems

Specification
