FAN  AC 230V  120x120x38mm, DP200A2123XBT IVT201G165.jpg

FAN AC 230V 120x120x38mm, DP200A2123XBT

Code IVT201G165
  • Manufacturer SUNON
  • ID code DP200A2123XBT
  • Weight 557.00g

E-shop price: 14,90

Amount: 3+ 5+
Price: 13,56 13,23
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (1)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (2)

Description

Drawing

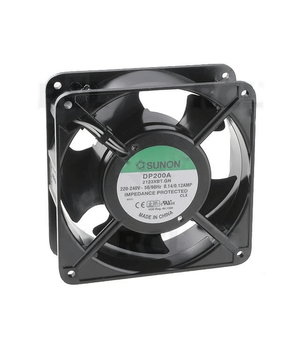

🌬️ Sunon DP200A2123XBT Fan

Manufacturer: Sunon
Model: DP200A2123XBT
Type: Axial AC Fan
Dimensions: 120 × 120 × 38 mm
Bearing Type: Ball
Rated Voltage: 230 V AC
Frequency: 50 Hz
Current Rating: 0.14 A
Power Consumption: 22 W
Airflow: 165 m³/h (±10%)
Rotational Speed: 2850 RPM
Noise Level: 45 dBA
Static Pressure: 8.63 mm H₂O
Insulation Resistance: ≥500 MΩ
Operating Temperature: -10°C to +70°C
Ingress Protection: IP55
Flammability Rating: UL94V-0
Impeller Material: Thermoplastic
Frame Material: Aluminum
Connectors: 2.8 × 0.5 mm terminals
Weight: ~505 g
Certifications: CE, UL, TUV, CSA

✅ Suitable for industrial equipment, electrical cabinets, and other systems requiring efficient cooling.
