FAN AC 230V 80x80x38mm, 39m3/h, 31dBA, SF23080A2083HSL, Sunnon IVT203.jpg

FAN AC 230V 80x80x38mm, 39m3/h, 31dBA, SF23080A2083HSL, Sunnon

Code IVT203
  • Manufacturer SUNON
  • ID code SF23080A2083HSL
  • Weight 160.00g

E-shop price: 13,90

Amount: 3+ 5+
Price: 12,93 12,23
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (2)

Description

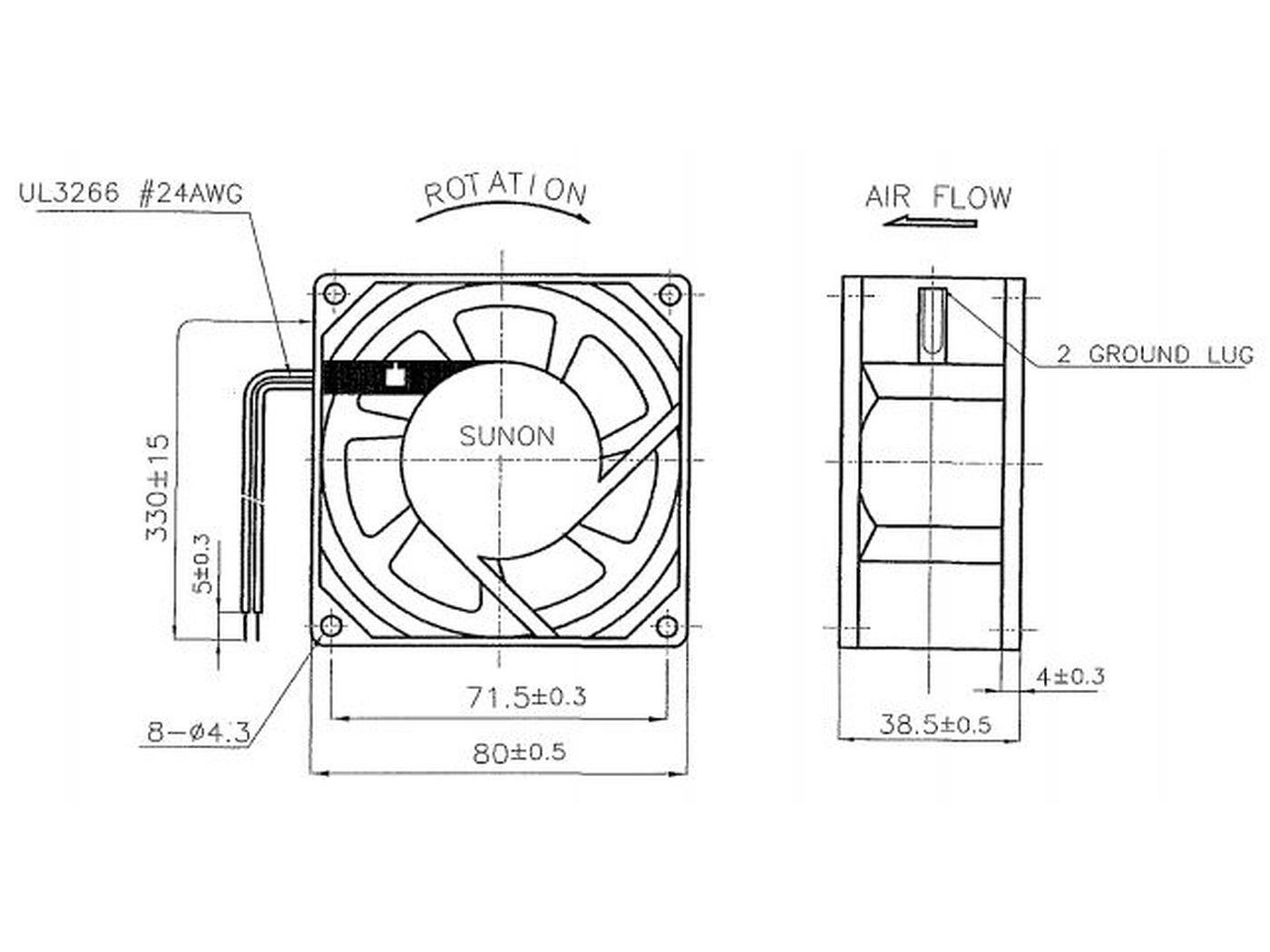

Drawing Datasheet

🌀 Sunon SF23080A2083HSL AC Axial Fan

Manufacturer: Sunon
Model: SF23080A2083HSL
Type: AC Axial Fan


🔧 Technical Specifications

  • Voltage: 230 V AC (185–245 V)
  • Frequency: 50 Hz
  • Power Consumption: 14–18 W
  • Current Rating: 70–90 mA
  • Airflow: 39 m³/h (±7%)
  • Speed: 2300 RPM
  • Noise Level: 31–35 dB(A)
  • Static Pressure: 3.05 mm H₂O (0.180 in H₂O)
  • Bearing Type: Sleeve Bearing
  • Operating Temperature: -10°C to +70°C
  • Insulation Resistance: ≥500 MΩ
  • Flammability Rating: UL94V-0, ECE R-118

📐 Dimensions & Materials

  • Dimensions: 80 × 80 × 38 mm
  • Frame Material: Aluminum
  • Blade Material: Thermoplastic (PBT)
  • Lead Length: 0.33 m (2 wires, 24 AWG)

✅ Certifications

  • CE, UL, TUV, CUR

📦 Applications

Ideal for cooling electronic components, industrial cabinets, automation systems, and other demanding ventilation requirements.
