FAN 12VDC 80x80x25mm SUNON, 69.29m3/h 33dBA, EF80251S1-1000U-A99, Sunnon
Code IVT205- Manufacturer SUNON
- ID code EF80251S1-1000U-A99
- Weight 96.00g
E-shop price: 3,90 €
| Amount: | 4+ | 8+ |
| Price: | 3,55 | 3,46 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (2) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (3) | |
Description

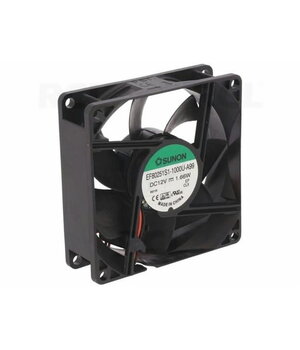

🌬️ Sunon EF80251S1-1000U-A99 – 80x80x25 mm 12V DC Axial Fan
Description: The Sunon EF80251S1-1000U-A99 is a compact, high-quality 12V DC axial fan designed for efficient cooling of electronic components. Its reliability and durability make it widely used across various industrial applications.
🔧 Technical Specifications:
- Voltage: 12 V DC
- Operating Voltage: 4.5–13.8 V DC
- Current Rating: 0.12 A (max. 0.138 A)
- Power Consumption: 1.44 W (max. 1.66 W)
- Speed: 3200 RPM ±10%
- Airflow: 41.0 CFM (69.29 m³/h)
- Static Pressure: 0.18 in H₂O (4.57 mm H₂O)
- Noise Level: 33 dB(A)
- Bearing Type: Sleeve
- Material: Thermoplastic PBT (UL94V-0)
- Features: Auto Restart
- Operating Temperature: -10°C to +70°C
- Connections: 2-wire leads (24 AWG), length 315 mm
📜 Certifications: CE, UL, TUV, CUR
📦 Dimensions: 80 x 80 x 25 mm
