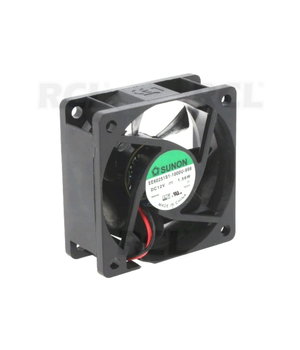

FAN DC 12VDC 60x60x25mm, EE60251S1, 39.72m3/h,  27dBA IVT206.jpg

FAN DC 12VDC 60x60x25mm, EE60251S1, 39.72m3/h, 27dBA

Code IVT206
  • Manufacturer SUNON
  • ID code EE60251S1-1000U-999
  • Weight 56.00g

E-shop price: 3,90

Amount: 3+ 5+
Price: 3,55 3,09
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (7)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (1)

Description

Datasheet

🌀 FAN Sunon EE60251S1-1000U-999

Type: DC Axial Fan
Manufacturer: SUNON
Model: EE60251S1-1000U-999
Dimensions: 60 × 60 × 25 mm
Bearing Type: Sleeve
Rated Voltage: 12 V DC (Operating Range: 4.5–13.8 V)
Current: 0.122 A (Max. 0.141 A)
Power Consumption: 1.47 W (Max. 1.70 W)
Airflow: 39.72 m³/h (23.5 CFM)
Static Pressure: 5.33 mm H₂O (0.21 in H₂O)
Speed: 4500 RPM
Noise Level: 27 dBA
Operating Temperature: -10°C to +70°C
Insulation Class: UL Class A
Bearing Life Expectancy: 35,000 hours at 40°C
Materials:
- Frame: PBT (UL94V-0)
- Blades: PBT (UL94V-0)
Protections:
- Auto Restart after Lock
- Polarity Protection
Certifications: CE, UL, TUV, CUR
Weight: 45 g
Leads: 2 wires, 290 mm length, 26 AWG

Specification
