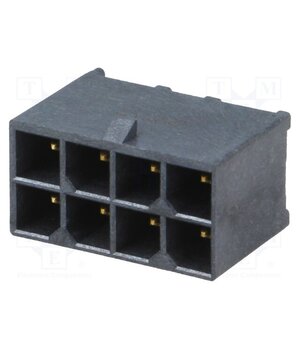

172065-0208 Connector: wire-board; socket; male; data; Mega-Fit; 600V; PIN: 8

• Rated voltage — 600V
• Number of pins — 8
• Contacts pitch — 5.7mm
• Operating temperature — -40°C…120°C
• Maximum current — 23A
• —
• Connector — socket
• Colour — black
• Manufacturer — MOLEX
• Conform to the norm — EN 60335-1
• Kind of connector — male
• —
• —
• —
• Contact plating — gold-plated
• Connector variant — Glow-Wire
• Type of pin configuration — 2x4
• Electrical mounting — THT
• —
• —
• Mechanical mounting — on PCBs
• Flammability Rating — UL94V-0
• —
• Locking system — latch
• —
• Spatial orientation — straight
• Type of connector — wire-board
• —
