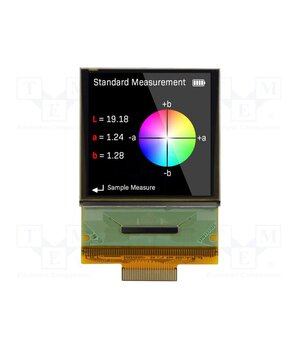

NHD-1.91-176176B Display: OLED; graphical; 1.91"; 176x176; Dim: 39.5x38.8x1.6mm

• Number of pins — 30
• Supply voltage — 1.8V
• Operating temperature — -40°C…70°C
• Supply voltage AC — 1.8V AC
• Supply voltage DC — 1.8V DC
• Tape pitch — 500μm
• Manufacturer — NEWHAVEN DISPLAY INTERNATIONAL
• Window dimensions (H x W) — 35.3x35.3mm
• Interface — 4-wire SPI
• Interface — 8bit
• Screen size — 1.91"
• Colour — RGB
• Display resolution — 176x176
• Interface — 8080
• —
• Kind of display — graphical
• —
• —
• Interface — I2C
• Dimensions — 39.5x38.8x1.6mm
• Type of display — OLED
• Connector pinout layout — 1x30
• Touchpad — none
• Kind of controller — SSD1333
• Interface — parallel
• Interface — 6800
• —
