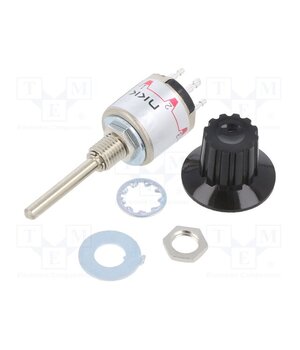

MRY106-A Switch: rotary; Pos: 6; 3A/125VAC; 2A/30VDC; Poles number: 1; MR

• Poles number — 1
• Max. contact resistance — 10mΩ
• Operating temperature — -10°C…70°C
• Electrical life — 7.5kcysles
• Min. insulation resistance — 100MΩ
• Body dimensions — Ø14x23.5mm
• Manufacturer — NKK SWITCHES
• Mounting hole diameter — Ø6.2mm
• Mounting — on panel
• Contact plating — silver plated
• —
• Contact material — copper
• —
• Switches Features — with knob
• —
• DC contacts rating @R — 2A / 30V DC
• —
• —
• Stable positions number — 6
• —
• —
• —
• Leads — for soldering
• Switch of type — rotary
