OLED graphic indicator 0.96'' I2C/SPI/IIC 4p blue
Code PLSC010P4- Weight 10.00g
E-shop price: 8,90 €
| Amount: | 3+ | 6+ |
| Price: | 7,92 | 6,34 |
| 6,99 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item is not available (0) | |
Description
The graphic OLED indicator is characterized by simple control, small dimensions and easy connection - IC bus
Features:
0.96" OLED with 128x64 resolution - blue
High contrast
Thanks to the use of OLED technology, the black elements on the screen are perfectly black
Modules for AVR, Arduino, PIC, STM32 and more. in microprocessor systems
SSD1306 driver
Communication with the display using the I2C interface
Parameters:
Size: 0.96 inch
Resolution 128x64
Power supply 3-5V
Energy consumption - max 0.08W
Operating temperature -30C to 80C

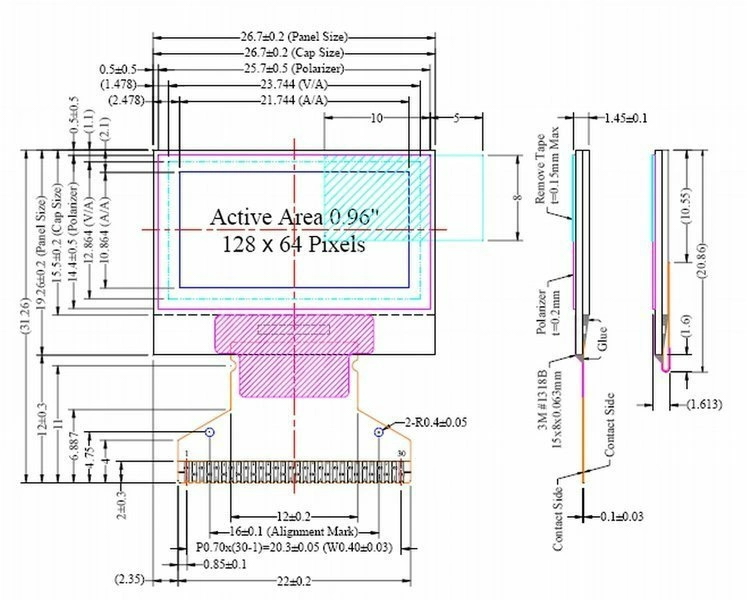

Dimensions 27x27x3.5 mm
Active part of the screen: 22x11 mm
For connection conclusion:
GND - ground
VCC - +5V power supply
SCL and SDA - I2C bus signals
