TFT Touch 2.8" LCD Screen Display Module for arduino UNO R3

Code PLSC039
  • Weight 43.00g

E-shop price: 19,90

Amount: 3+ 5+
Price: 17,91 14,74
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item is not available (0)

Item description

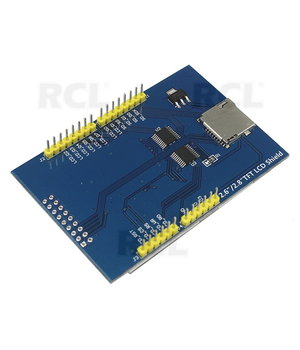

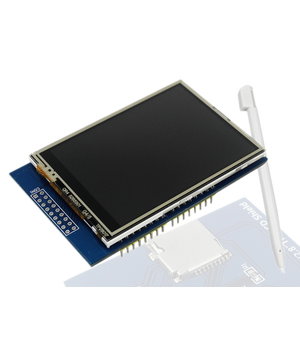

2.8" TFT LCD Shield:

  • UNO R3 and its compatible board can use it directly to display characters, graphics and BMP format images. And touch controlling is available;
  • library: AdafruitTFTLCD, Touch Screen and AdafruitGFX;
  • Touch screen type: resistive touchscreen.
  • Touch Pen: length is 9cm;
  • Resolution: 240X320;
  • Display size: 2.8 inch;
  • Operating voltage: 5V;
  • Logic level: 5V / 3.3V;
  • On-board 3.3V / 300mA regulator circuit;
  • Operating current: the maximum is 150mA without TF card;
  • Use the A0 ~ A4 pins, D2 ~ D13 pins. If you do not use TF card, you can use the D10 ~ D13;
  • Onboard Micro SD slot, support 2GB Micro SD / TF Card;
