LCD ARDUINO 1602 2x16 blue
Code PLSC04- Weight 55.00g
E-shop price: 7,90 €
| Amount: | 3+ | 6+ |
| Price: | 6,87 | 4,68 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description

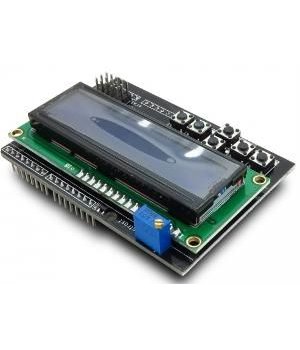

This is a very popular LCD display for the Arduino module. It can be mounted without any additional connections (no soldering required). This display uses the Arudino LCD4Bit library.
For output:
A0 - Button(select, up, right, down and left)
D4 - DB4
D5 - DB5
D6 - DB6
D7 - DB7
D8 - RS(Data or signal display selection)
D9 - LCD1602 Enable
D10 - Backlight control.
