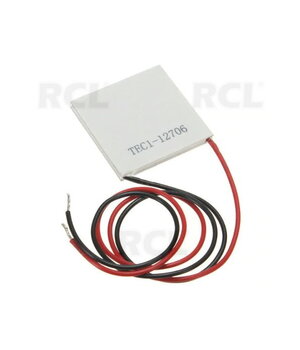

Peltier Plate Module TEC1-12706 12V 5A 60W, -30°C ... 70°C, 40x40x3.5mm
Code PPLT125- Weight 30.00g
E-shop price: 8,50 €
| Amount: | 3+ | 6+ |
| Price: | 7,90 | 7,45 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (3) | |
Description
· Max. Operating Temperature: 138oC
· Do not exceed Imax or Vmax when operating module.
· Life expectancy: 200,000 hours
Hot Side Temperature (ºC): 25ºC / 50ºC
Qmax (Watts): 50 / 57
Delta Tmax (ºC): 66 / 75
Imax (Amps): 6.4 / 6.4
Vmax (Volts): 14.4 / 16.4
Module Resistance (Ohms): 1.98 / 2.30
