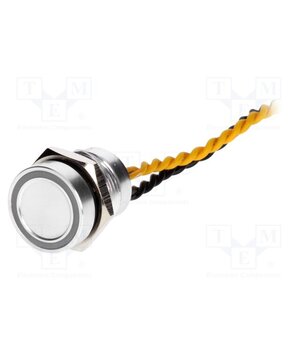

PS165P10YNT1Y12V Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC

• Operating temperature — -40°C…75°C
• Illumination voltage — 12V
• Contact current max. — 200mA
• Electrical life — 50Mcysles
• Lead length — 30mm
• Operating Force — 6N
• —
• —
• Illumination — thin
• Leads — cables
• —
• IP rating — IP68
• Switching method — OFF-(ON)
• —
• AC contacts rating @R — 0.2A / 24V AC
• Body colour — silver
• Backlight colour — yellow
• Switched voltage — max. 24V DC
• Manufacturer — ONPOW
• —
• Mounting hole diameter — Ø16mm
• Illumination — LED
• Switched voltage — max. 24V AC
• Body material — aluminium
• Illumination — ring
• Contacts configuration — SPST-NO
• DC contacts rating @R — 0.2A / 24V DC
• Stable positions number — 1
• Switch of type — piezoelectric
• Button shape — flat
• —
• —
