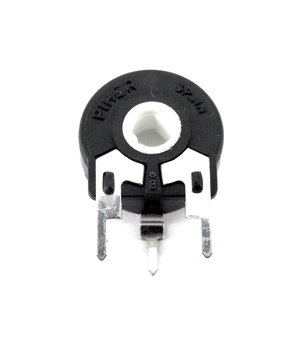

TRIMMER 50 kΩ vertical, 0.25W, ±20%, L=10x5mm, Piher RDXXXV9.jpg

TRIMMER 50 kΩ vertical, 0.25W, ±20%, L=10x5mm, Piher

Code RD450V9
  • Manufacturer PIHER
  • Weight 1.30g

E-shop price: 0,70

Amount: 5+ 10+
Price: 0,64 0,63
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item is not available (0)
Shop in Kaunas Item available (1)

Item description

Drawing Datasheet

Potentiometer series: PT15NH
Potentiometer standard: 15mm
Mechanical rotation angle: 265 ±5°
Torque: 0,5...2,5Ncm
Operating temperature: -25...70°C
Lead pitch: 10x5mm
Wire track material: carbon
Electrical rotation angle: 250 ±20°
Housing dimensions: Ø15x6mm

Specification
