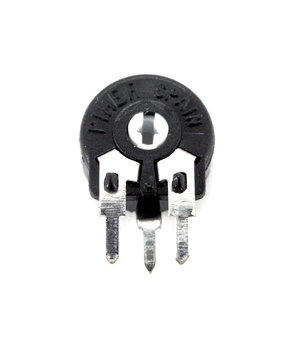

TRIMMER 100 kΩ vertical, 0.15W, ±20%, L=5x2.5mm, Piher
Code RD510V6- Manufacturer PIHER
- Weight 0.60g
E-shop price: 0,60 €
| Amount: | 5+ | 10+ |
| Price: | 0,52 | 0,35 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (3) | |
Item description
Potentiometer series PT10LH
Potentiometer standard: 10 mm
Mechanical rotation angle: 235 ± 5°
Torque: 0,4...2Ncm
Operating temperature: -25...70°C
Lead pitch: 5x10 mm
Wire track material: carbon
Electrical rotation angle: 220 ±20°
Housing dimensions: Ø10,3x4,5 mm
Potentiometer features: rectangular hole suitable for screwdriver.
