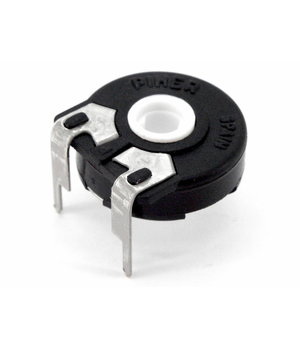

TRIMMER 1 MΩ horizontal, 0.25W, ±20%, L=10x12.5mm, Piher RDXXXH9.jpg

TRIMMER 1 MΩ horizontal, 0.25W, ±20%, L=10x12.5mm, Piher

Code RD610H9
  • Manufacturer PIHER
  • Weight 1.30g

E-shop price: 0,70

Amount: 5+ 10+
Price: 0,62 0,55
Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 2pcs.
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (2)
Shop in Kaunas Item is not available (0)

Item description

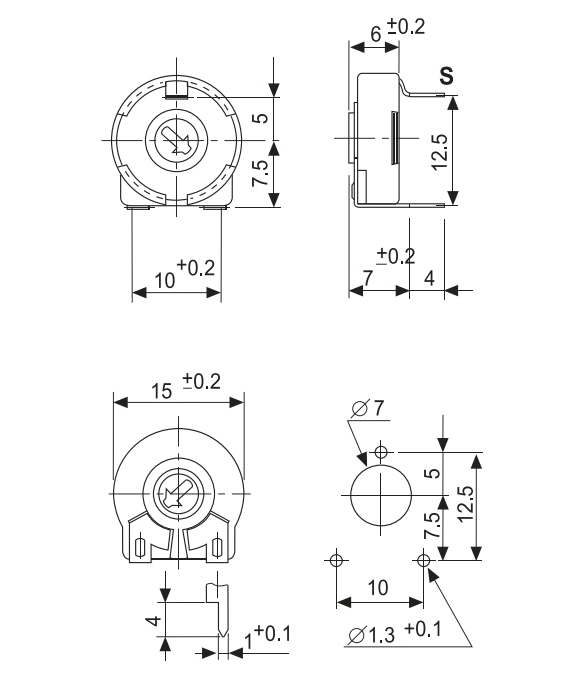

Drawing Datasheet

Potentiometer series: PT15NV
Potentiometer standard: 15mm
Mechanical rotation angle: 265 ±5°
Torque: 0,5...2,5Ncm
Operating temperature: -25...70°C
Lead pitch: 12,5x10mm
Wire track material: carbon
Electrical rotation angle: 250 ±20°
Housing dimensions: Ø15x6mm

Specification
