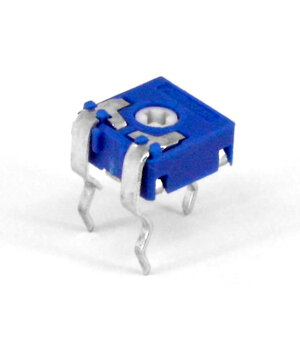

TRIMMER 10kΩ, horizontal, 0.1W, ±20%, L=5x5mm
Code RDA410H5- Weight 2.00g
E-shop price: 0,60 €
| Amount: | 5+ | 10+ |
| Price: | 0,55 | 0,54 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (11) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Potentiometer series: CA6
Potentiometer standard: 6mm
Mechanical rotation angle: 235 ±10°
Torque: 0,2...2Ncm
Operating temperature -25...70°C
Output pitch: 5x5mm
Conductive track material: carbon
Electrical rotation angle: 215 ±20°
Housing dimensions: 6,5x6,5x3,5mm
