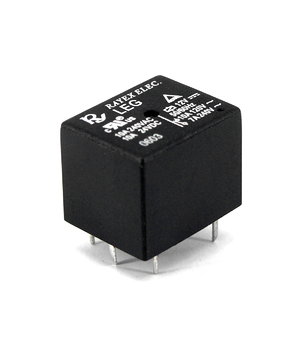

RELAY 5V 10A 24VDC / 120VAC, 19x16x16mm, RAYEX ELECTRONIC
Code RL0510R- Manufacturer RAYEX ELECTRONICS
- Weight 10.00g
E-shop price: 1,30 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,14 | 0,86 | 0,80 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (36) | |
| Shop in Vilnius | Item available (13) | |
| Shop in Kaunas | Item available (18) | |
Item description
- Contacts configuration SPDT
- Rated coil voltage 5V DC
- AC contacts rating @R (at resistance load) 10A / 120V AC
- DC contacts rating @R (at resistance load) 10A / 24V DC
- Contact current max. 10A
- Switched voltage max 100V DC, max 240V AC
- Relay variant miniature
- Mounting PCB
- Coil resistance 70Ω
- Operate time 8ms

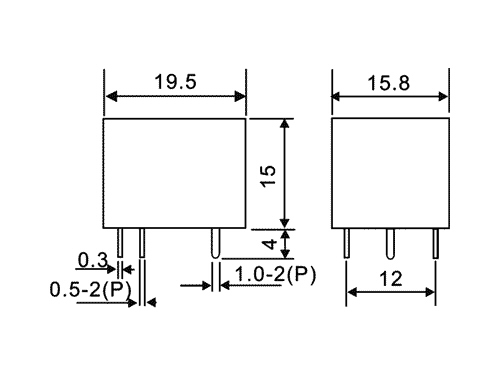

- Body dimensions 19.5 x 15.8 x 15mm
- Release time 8ms
- Coil power consumption 360mW
- Operating temperature -30...85°C
- Relay series LEG
- Contact resistance 100mΩ
- Terminal pitch 2mm
- Coil current 72mA
