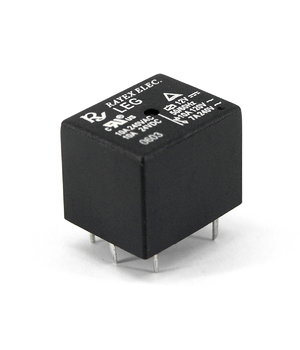

RELAY Ucoil: 24V 360mW, 10A SPDT 10A/120VAC, 10A/24VDC, RAYEX LEG-24
Code RL2410- Manufacturer RAYEX ELECTRONICS
- Weight 9.80g
E-shop price: 0,95 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 0,84 | 0,75 | 0,70 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (15) | |
| Shop in Vilnius | Item available (11) | |
| Shop in Kaunas | Item available (9) | |
Item description
- Relay variant: miniature
- Mounting: PCB
- Contacts configuration: SPDT
- AC contacts rating: 10A / 120V AC
- DC contacts rating: 10A / 24V DC
- Contact current max.: 10A
- Switched voltage: max. 100V DC, max. 240V AC
- Coil power consumption: 360mW
- Coil current: 15mA
- Coil resistance: 1.6kΩ
- Release time: 8ms
- Operate time: 8ms
- Operating temperature: -30...85°C
- Body dimensions: 19.5x15.8x15mm
- Terminal pitch: 2mm
