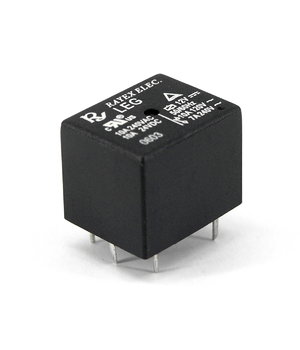

RELAY 24V 15A R=1600 Om
Code RL2415- Weight 10.00g
E-shop price: 1,30 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,14 | 0,86 | 0,80 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (1) | |
Description
- Relay variant: miniature
- Mounting: PCB

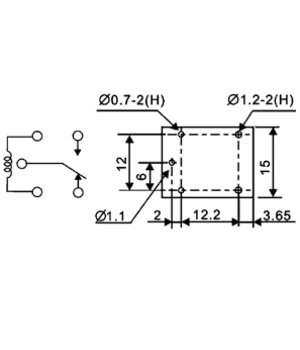

- Contacts configuration: SPDT
- AC contacts rating: 15A / 120V AC
- DC contacts rating: 15A / 24V DC
- Contact current max.: 15A
- Switched voltage: max. 100V DC, max. 240V AC
- Coil power consumption: 360mW
- Coil current: 15mA
- Coil resistance: 1.6kΩ
- Release time: 8ms
- Operate time: 8ms
- Operating temperature: -30...85°C

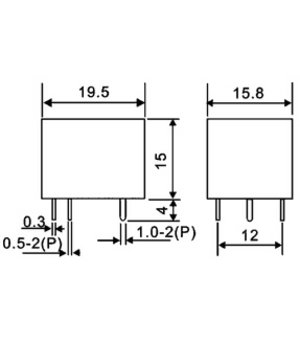

- Body dimensions: 19.5x15.8x15mm
- Terminal pitch: 2mm
