RELAY 24V 40A, coil 1.6W, NO, interconnecting contacts
Code RL2440S- ID code S10-1A-C1-24VDC
- Weight 0.00g
E-shop price: 1,75 €
| Amount: | 10+ | 25+ |
| Price: | 1,64 | 1,57 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (115) | |
| Shop in Vilnius | Item available (20) | |
| Shop in Kaunas | Item available (20) | |
Description
Relay 24V 40A S10-1A-C1-24VDC
S10-1A-C1-24VDC is a high-current single-pole relay designed for use in various electrical circuits where reliable on/off control is required. This relay operates at a 24V DC control voltage and is capable of switching loads up to 40A.
Technical Specifications
| Model | S10-1A-C1-24VDC |
| Control Voltage | 24V DC |
| Maximum Current | 40A |
| Contact Type | 1 form A (SPST NO) |
| Contact Voltage | Up to 250V AC / 30V DC |
| Relay Type | Electromechanical |

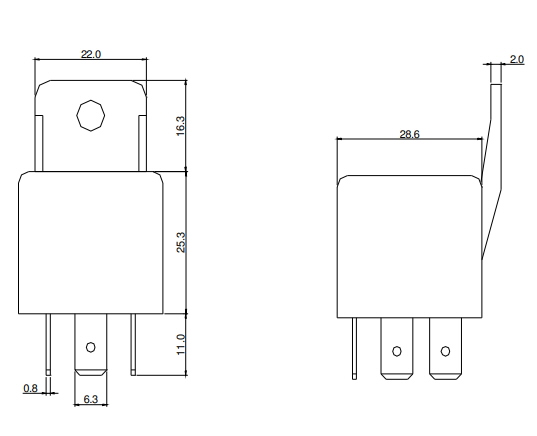

| Dimensions | ~28 x 28 x 25 mm |
| Temperature Range | -40°C to +85°C |
Applications
- Automation systems
- Industrial controllers
- Automotive electronics
- Power supply switching
- Security systems
Advantages
- High switching capacity (up to 40A)
- Reliable long-term operation
- Compact size
- Simple 24V DC signal control
Note: When using the relay, make sure to provide proper protection against voltage spikes (e.g., by placing a flyback diode across the coil).
