RELAY MODULE 2 channels, OMRON solid RLMD02S.jpg

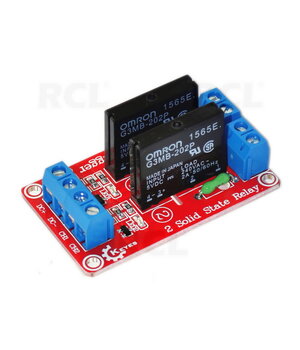

RELAY MODULE 2 channels, OMRON solid

Code RLMD02S
  • Weight 25.00g

E-shop price: 5,85

Amount: 4+ 8+
Price: 5,32 4,97
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (1)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (2)

Description

5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A
Input Power: 5VDC
Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)
Dimensions: 55x33x25mm

Feature:
Voltage: 5V
Quiescent current: 0 mA
Operating current: 12.5mA
Trigger Voltage: 3.3-5V
Trigger current: 2mA

Module interface:
DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply
CH1: relay module signal triggering end (low to trigger active)
CH2: relay module signal triggering end (low to trigger active)
