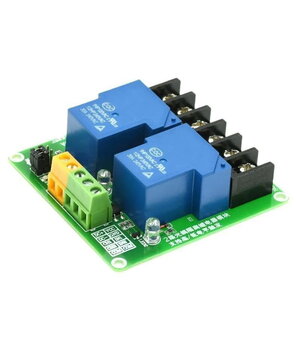

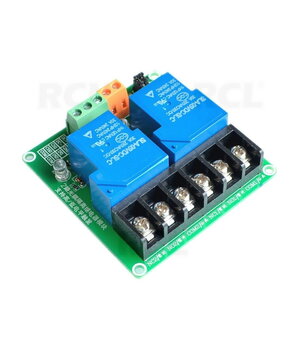

RELAY MODULE 2 channels HIGH/LOW trigger 5V
Code RLMD08- Weight 95.00g
E-shop price: 8,60 €
| Amount: | 3+ | 5+ |
| Price: | 7,65 | 6,82 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Item description
Product application:
PLC automation equipment control, industrial system control, Internet of Things control, Home intelligent control, electronic enthusiasts development experiment, various circuit modification.
Product parameters:
05V low level trigger module: 0-2V DC relay is on (0N), 3-5V DC relay is off (OFF)
05V high level trigger module: 3.3-5V DC relay is on (0N), 0-2.5V DC relay is off(0FF)
Voltage: 5V
Static current: 5mA
Maximum working current: 50mA
Trigger mode: low / high level trigger
Load voltage: DC 30V or AC 250V
Load current: 30A
Relay life: more than 100.000 times
Structure size: about 707222mm
