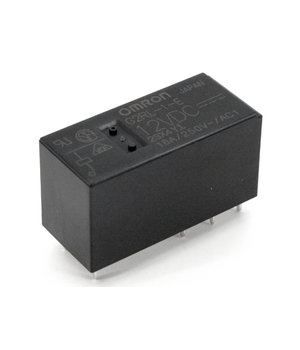

RELAY 12V 16A/250VAC G2RL-1E OMRON, with single contact
Code RLOG2L112- Manufacturer OMRON
- ID code G2RL-1-E 12VDC
- Weight 13.00g
E-shop price: 2,90 €
| Amount: | 5+ | 10+ |
| Price: | 2,61 | 2,44 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (20) | |
| Shop in Vilnius | Item available (7) | |
| Shop in Kaunas | Item available (11) | |
Description
Contacts configuration: SPDT
Switched voltage: max. 300V DC, max. 440V AC
Mounting: PCB
Coil resistance: 360Ω
Coil current: 33.3mA
Operate time: 15ms
Release time: 5ms
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Terminal pitch: 5mm

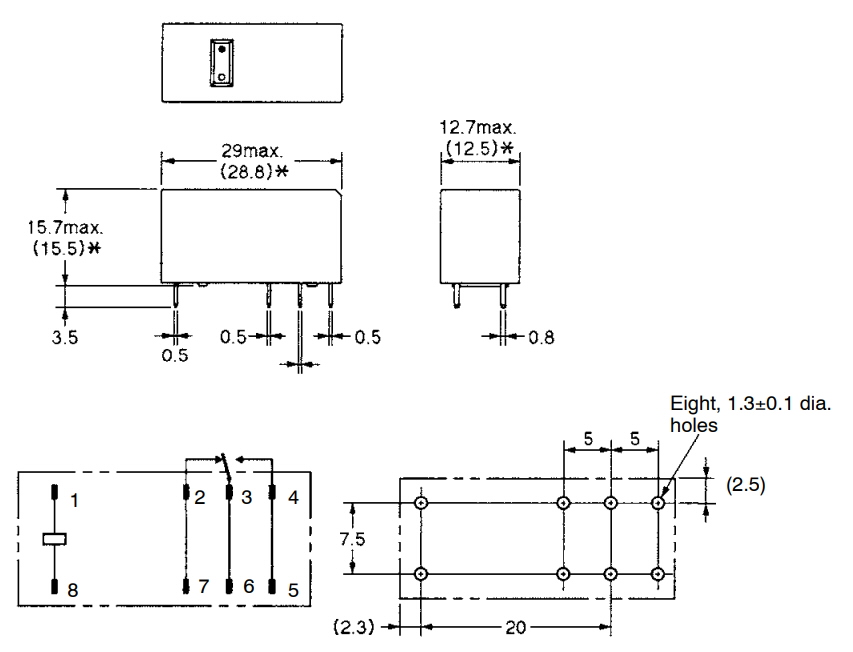

Body dimensions: 29x12.7x15.7mm
