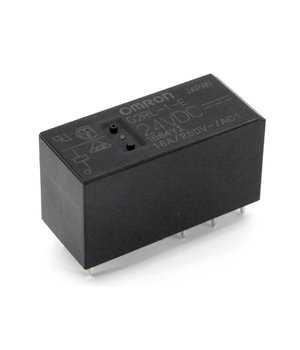

RELAY 24V 16A/250VAC G2RL-1E OMRON , with single contact
Code RLOG2L124- Manufacturer OMRON
- ID code G2RL-1-E 24VDC
- Weight 10.00g
E-shop price: 2,90 €
| Amount: | 5+ | 10+ |
| Price: | 2,64 | 2,30 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (11) | |
| Shop in Vilnius | Item available (5) | |
| Shop in Kaunas | Item available (9) | |
Description
Contacts configuration: SPDT
Switched voltage: max. 300V DC, max. 440V AC
Mounting: PCB
Coil resistance: 1.44kΩ
Coil current: 16.7mA
Operate time: 15ms
Release time: 5ms
Operating temperature: -40...85°C
Contact resistance: 100mΩ

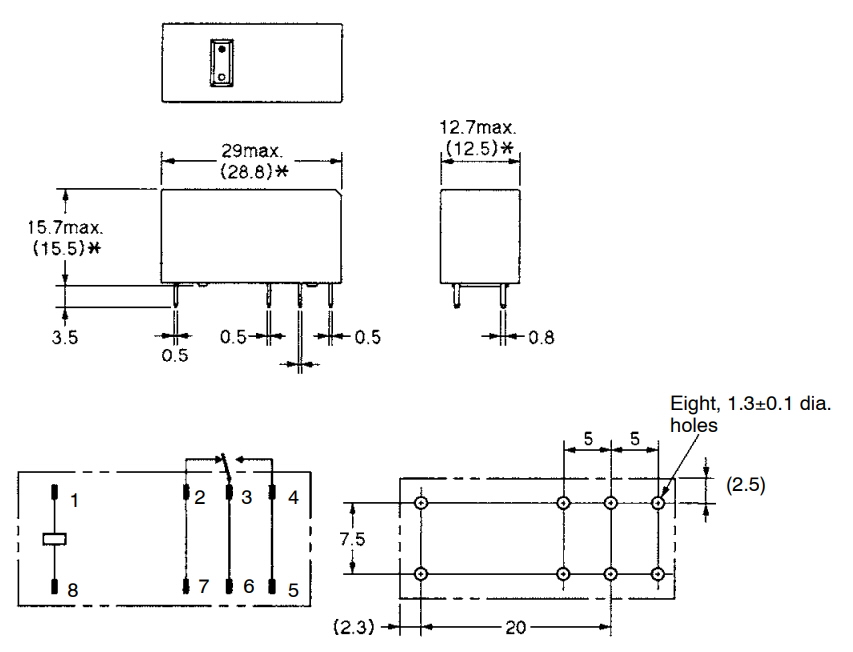

Terminal pitch: 5mm
Body dimensions: 29x12.7x15.7mm
